DNC Hardware

xlConnect-UE
xlConnect-UE

xlConnect-UE Unit

    • This unit connects directly from the ethernet network to the USB port on the machine tool, and is the only DNC system that can connect directly to a CNC machine that comes from the manufacturer with just a USB port.
    • Includes power adapter and USB cable.
    • Dimensions 3.625"W, 1.375"H, 6.125"L ,and 'up to' 5mbps speed (dependent on network).

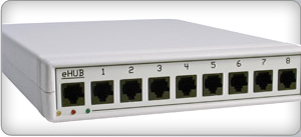

eHub
eHub

eHUB Unit

  • This unit is for CNC's with serial ports and a wired ethernet connection to your network.
  • 8 Serial Ports for CNC's, 1 Ethernet Port to connect to network.
  • Comes with power cable.
  • Dimensions 8"W, 1.5"H, 11”L

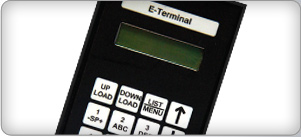

E-Terminal
E-Terminal

E-Terminal

  • This unit will give you the ability to collect data at the CNC and to easily be able to upload/download programs and enter monitoring events.
  • 1 Serial Port for CNC, 1 Serial Port for Scanner, and 1 Serial Port to connect to eHUB or xlConnect Unit.
  • Comes with 7' CAT-5 cable and 12V power supply.
  • Dimensions 3.875"W, 1.125"H, 7.375”L

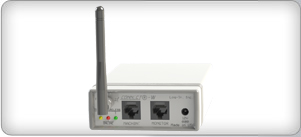

xL Connect-W Unit
xL Connect-W Unit

xl Connect-W Unit

  • This unit is wireless and used on CNC's that have an ethernet port for communications, supports FTP and CAPS.
  • 1 Ethernet Port for CNC, 1 Serial Port for accessories.
  • Comes with 7' CAT-5 cable and 12V power supply.
  • Wireless is 802.11B or G.
  • Dimensions 3.625"W, 1.375"H, 6.125"L

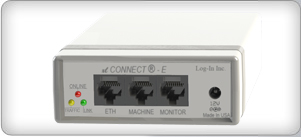

xL Connect-ERS Unit
xL Connect-ERS Unit

xl Connect-E Unit

  • This unit is for CNC's with a serial port and a wired connection to your network.
  • 1 Serial Port for CNC, 1 Serial Port for accessories, and 1 Ethernet Port to connect to network.
  • Comes with 7' CAT-5 cable and 12V power supply.
  • Dimensions 3.625"W, 1.375"H, 6.125"L

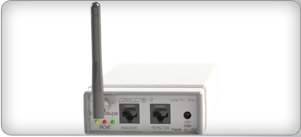

xL Connect-2 Unit
xL Connect-2 Unit

xL Connect-2 Unit

  • This unit is wireless and used on a CNC with a serial port (RS-232).
  • 1 Serial Port for CNC, 1 Serial Port for accessories.
  • Comes with 7' CAT-5 cable and 12V power supply.
  • Wireless is 802.11 B or G.
  • Dimensions 3.625"W, 1.375"H, 6.125"L

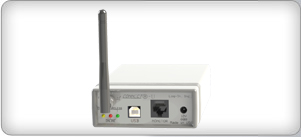

xL Connect-U Unit
xL Connect-U Unit

xL Connect-U Unit

  • This unit is wireless and is used on CNC's with USB ports, it mimics a USB thumb drive.
  • 1 USB Port for CNC, 1 Serial Port for accessories.
  • Comes with 4' USB cable and 12V power supply.
  • Wireless is 802.11 B or G.
  • Dimensions 3.625"W, 1.375"H, 6.125"L
Machine Monitoring Board
Machine Monitoring Board

Machine Monitoring Board

  • This unit is for collecting signals from machines such as Cycle On, Feed Hold, Spindle on/off, Feed Rate Override, Spindle Override, etc..
  • 1 Serial Port for connection to eHUB or xlConnect, 1 Serial Port for CNC (optional).
  • DB25 Connector, connects to – 8 Digital outputs, 2 Analog outputs, 1 Digital input. Multiple boards can be connected to a machine.
  • Dimensions 3.375"W, .625"H, 4.5"L

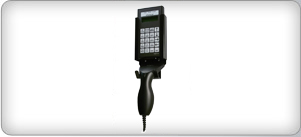

CCD Hand Held Scanner
DNC Hardware

CCD Hand Held Scanner

  • This unit is for scanning data in at the CNC for eNETDNC to use for DNC, Data Collection or Monitoring.
  • 1 Serial Connection for eTerminal
  • Comes with 7' Cable.
  • Dimensions 3.625"W, 1.5"H, 7.375"L
